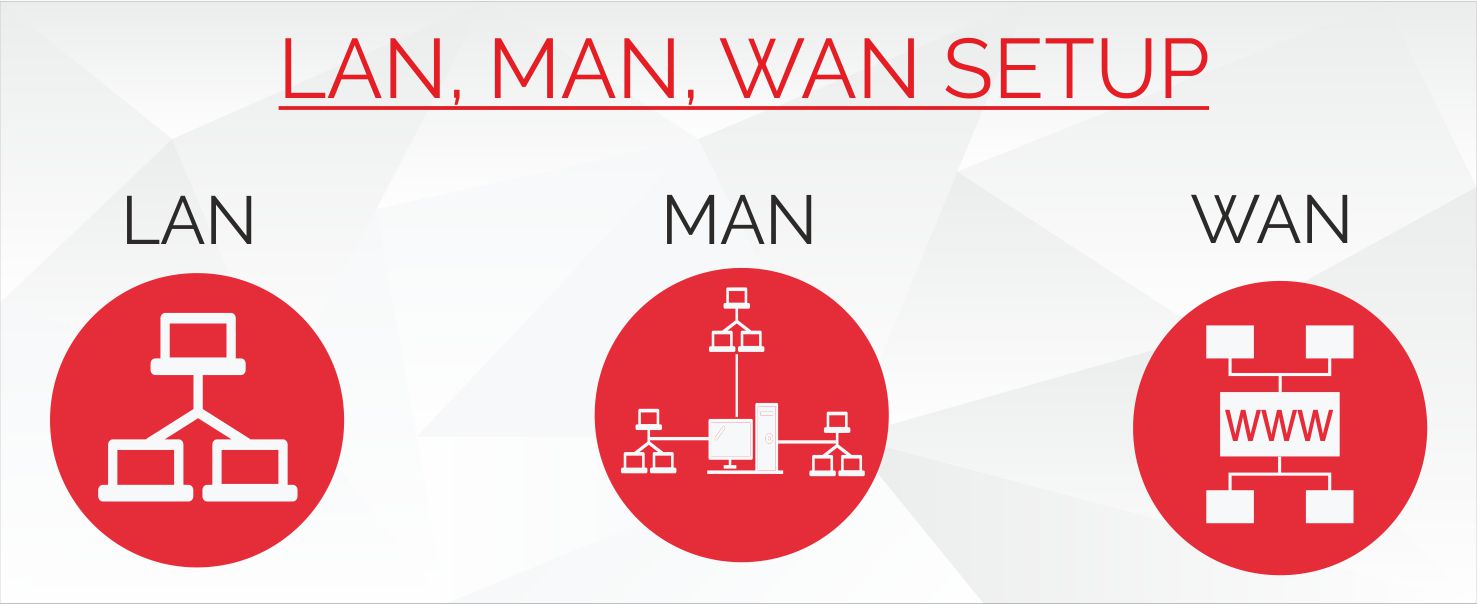

Introduction to LAN, WAN and MAN: Networking

A computer network consists of two or more computers that are interconnected with each other and share resources such as printers, servers, and hardware and exchange the data in the form of files, facilitating electronic communication. Computers on a network can be connected through twisted pair cables, telephone lines, radio waves, satellites or optical fiber cables.

The first computer network designed was the ‘Advanced Research Projects Agency Network (ARPANET)’ by the United States Department of Defense. Since then, myriads of new computer networking technologies have been designed.

Local Area Network (LAN)

A Local Area Network (LAN) is a network that is restricted to smaller physical areas e.g. a local office, school, or house. Approximately all current LANs whether wired or wireless are based on Ethernet. On a ‘Local Area Network’ data transfer speeds are higher than WAN and MAN that can extend to a 10.0 Mbps (Ethernet network) and 1.0 Gbps (Gigabit Ethernet).

LAN networks can be implemented in multiple ways, for example twisted pair cables and a wireless Wi-Fi with the IEEE 802.11 standard can be used for this purpose. One end of the twisted pair cable is plugged into switches using ‘RJ-45 connectors’ whereas the other end is plugged to a computer or in another network. All new routers use the b/g/n IEEE 802.11 standards. The ‘b’ and ‘g’ operate in the 2.4 GHz spectrum, and ‘n’ operates in 2.4 and 5.0 GHz which allows better performance and less interference.

Computers and servers (provides services to other computers like printing, file storage and sharing) can connect to each other via cables or wirelessly in a same LAN. Wireless access in conjunction with wired network is made possible by Wireless Access Point (WAP). Devices with WAP functionality provide a bridge between computers and networks. A WAP is able to connect hundreds or even more of wireless users to a network. Servers in a LAN are mostly connected by a wire since it is still the fastest medium for network communication. But for workstations (Desktop, laptops, etc.) wireless medium is a more suitable choice, since at some point it is difficult and expensive to add new workstations into an existing system already having complex network wiring.

Wide Area Network (WAN)

Wide Area Network is a computer network that covers relatively larger geographical area such as a state, province or country. It provides a solution to companies or organizations operating from distant geographical locations who want to communicate with each other for sharing and managing central data or for general communication.

WAN is made up of two or more Local Area Networks (LANs) or Metropolitan Area Networks (MANs) that are interconnected with each other, thus users and computers in one location can communicate with users and computers in other locations.

In ‘Wide Area Network’, Computers are connected through public networks, such as the telephone systems, fiber-optic cables, and satellite links or leased lines. The ‘Internet’ is the largest WAN in a world. WANs are mostly private and arebuild for a particular organization by ‘Internet Service Providers (ISPs)’ which connects the LAN of the organization to the internet. WANs are frequently built using expensive leased lines where with each end of the leased line a router is connected to extend the network capability across sites. For low cost solutions, WAP is also built using a ‘circuit switching’ or ‘packet switching’ methods.

Metropolitan Area Network (MAN)

A Metropolitan Area Network (MAN) is a network that connects two or more computers, communicating devices or networks in a single network that has geographic area larger than that covered by even a large ‘Local Area Network’ but smaller than the region covered by a ‘Wide Area Network’. MANs are mostly built for cities or towns to provide a high data connection and usually owned by a single large organization.

A Metropolitan Area Networks bridges a number of ‘Local Area Networks’ with a fiber-optical links which act as a backbone, and provides services similar to what Internet Service Provider (ISP) provide to Wide Area Networks and the Internet.

Major technologies used in MAN networks are ‘Asynchronous Transfer Mode (ATM)’, ‘Fiber Distributed Data Interface (FDDI)’ and ‘Switched Multi-megabit Data Service (SMDS, a connectionless service)’. In most of the areas, these technologies are used to replace the simple ‘Ethernet’ based connections. MANs can bridge Local Area Networks without any cables by using microwave, radio wireless communication or infra-red laser which transmits data wirelessly.

‘Distributed Queue Dual Bus (DQDB)’ is the Metropolitan Area Network (MAN) IEEE 802.6 standard for data communication. Using DQDB, networks can extend up to 100km-160km and operate at speeds of 44 to 155Mbps.
